Description

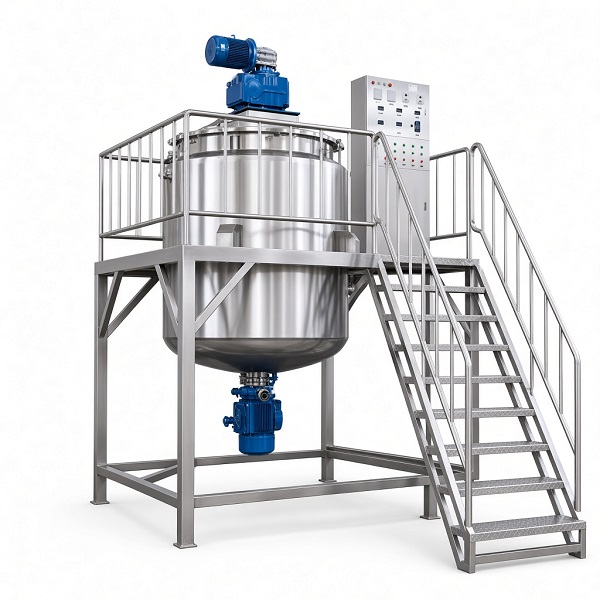

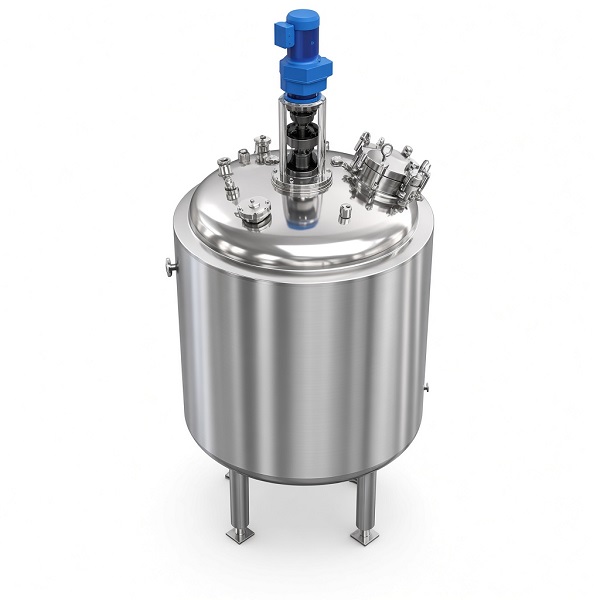

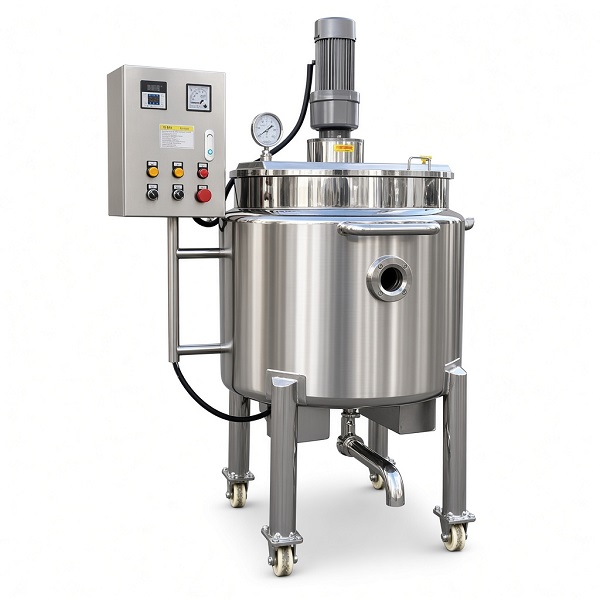

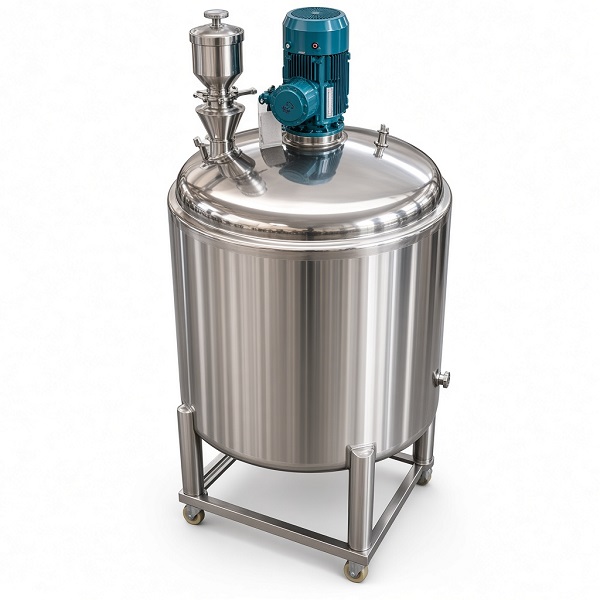

Stainless Steel Pharmaceutical Mixing Tanks (500 Liters to 5,000 Liters)

Key Features and Benefits

• Material of construction – Contact surfaces in AISI 304 or 316L stainless steel deliver the corrosion resistance and non-reactive surface required for pharmaceutical liquids. 316L is preferred where chlorides or more aggressive media are present.
• Agitation systems – Top-mounted or bottom-entry agitators (propeller, paddle, anchor or turbine types) create controlled axial or radial flow. Variable-speed drives allow operators to match shear and flow to product viscosity, reducing batch variation.
• Surface finish – Internal surfaces can be mechanically polished or electropolished to low Ra values, minimising product adhesion and supporting thorough cleaning.
• Optional jackets – Dimple, half-pipe or full jackets permit steam, hot-water or chilled-water temperature control for dissolution, crystallisation or viscosity management.
• Sanitary design details – Large-radius corners, fully drainable bottoms (dished or conical), sanitary fittings and CIP spray-ball readiness reduce cleaning time and contamination risk.
• Access and instrumentation – Manways, sight glasses, sample ports, temperature and level sensors can be integrated according to process needs.
• Local fabrication advantage – Built in Kenya with parts availability and after-sales support, these stainless steel pharmaceutical mixing tanks reduce lead times and simplify future servicing compared with fully imported units.

Also See: Stainless Steel Mixing Tanks

Applications and Use Cases

Stainless steel pharmaceutical mixing tanks are used across:

• Pharmaceutical manufacturing – preparation of oral liquids, syrups, suspensions, eye drops, nasal solutions and injectable formulations.
• Biotech and sterile processing – buffer preparation, media make-up and API dissolution.
• Cosmetics and personal-care – lotions, gels and liquid formulations that share similar hygienic requirements.
• Nutraceutical and herbal extract production – blending of liquid concentrates and syrups.
• Related liquid processing in food and fine-chemical environments where sanitary stainless construction is required.

Who Is This Product For?

These tanks suit pharmaceutical manufacturers, contract development and manufacturing organisations (CDMOs), biotech facilities, cosmetics producers and any operation that needs reliable, hygienic liquid blending at pilot or production scale. They are particularly practical for companies in Kenya and East Africa that value local fabrication, installation support and ready availability of spare parts.

They may not be the first choice for extremely high-pressure reactions or processes requiring exotic alloys beyond 316L; such applications are evaluated case by case.

Important Buying Considerations

• Capacity should match typical batch size plus headspace for agitation and any foaming.
• Material grade: 304 is adequate for many aqueous preparations; 316L is recommended for higher chloride content or more aggressive cleaning chemicals.
• Agitator selection depends on viscosity and whether gentle blending or higher shear is needed.
• Jacket requirement is determined by process temperature needs.
• Surface finish and drainability affect cleanability and validation effort.
• Local support, warranty and availability of replacement parts reduce long-term operating cost.
• Installation space, utility connections (power, steam/water if jacketed) and access for maintenance should be confirmed early.

Installation and Maintenance

Raydan offers free installation and commissioning where applicable. Site requirements typically include a level foundation, suitable power supply for the agitator motor, and utility connections for any jacket. After-sales service and spare-parts support are available across Kenya and selected East African locations.

Routine maintenance centres on periodic inspection of seals, agitator bearings and surface condition, plus adherence to validated CIP/SIP procedures. Because the tanks are fabricated locally, replacement components and technical assistance are readily accessible.

Also See: Stainless Steel Steam Vessels | Steam Jacketed  Kettles

FAQs

1. What is a stainless steel pharmaceutical mixing tank used for?
   It is used to blend, dissolve and homogenise pharmaceutical liquids, APIs, syrups, buffers and suspensions under controlled, hygienic conditions.
2. What capacity range is available for pharmaceutical mixing tanks?
   Standard offerings cover 500 litres to 5,000 litres; custom sizes outside this range can be discussed.
3. Should I choose 304 or 316L stainless steel?
   304 is suitable for many general aqueous formulations. 316L provides better resistance to chlorides and is preferred for more demanding pharmaceutical or sterile applications.
4. Are these tanks CIP/SIP compatible?
   Designs incorporate features that support Clean-in-Place and Sterilise-in-Place procedures when specified.
5. What agitator types are available?
   Common options include propeller, paddle, anchor and turbine agitators, selected according to product viscosity and process goals.
6. Is installation included?
   Free installation and commissioning are offered where applicable. Countrywide delivery across Kenya is standard, with shipping to selected major towns in Tanzania, Uganda, Rwanda and Burundi.
7. What warranty and after-sales support are provided?
   A one-year warranty is included. After-sales service and parts availability are provided by the local fabrication team.

Get a Custom Fabricated Solution for Your Needs

When you need reliable stainless steel pharmaceutical mixing tanks that combine sanitary design, practical capacity options and local support, Raydan Stainless Steel Fabricators delivers vessels built for the realities of East African pharmaceutical production. Request a quotation or technical discussion and we will size and configure a tank that matches your process.
