Description

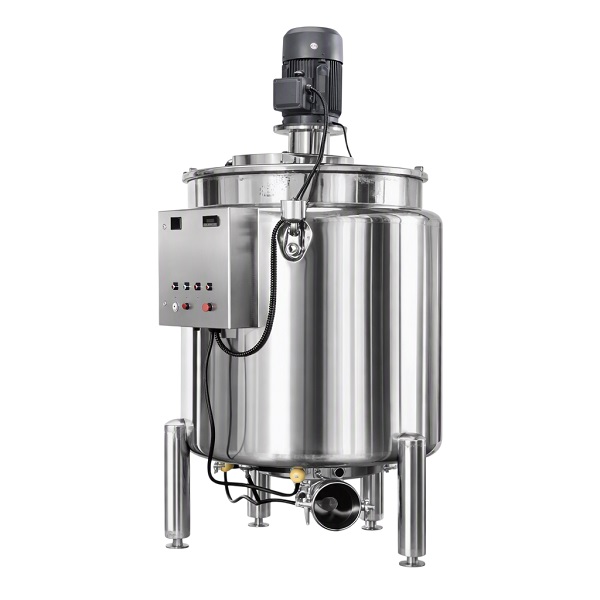

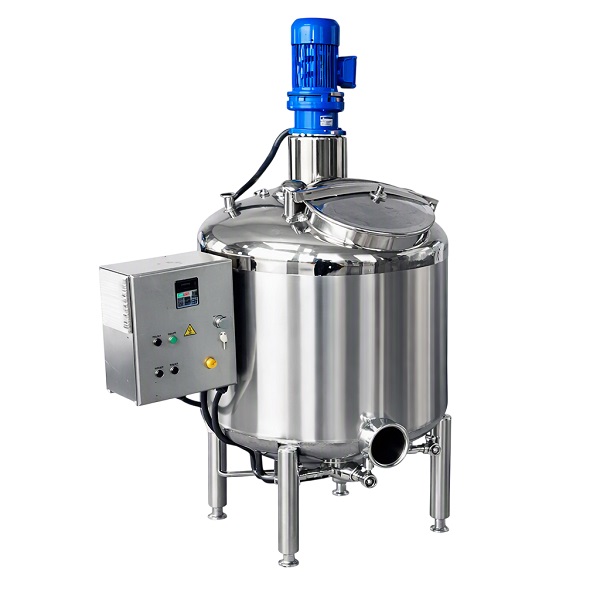

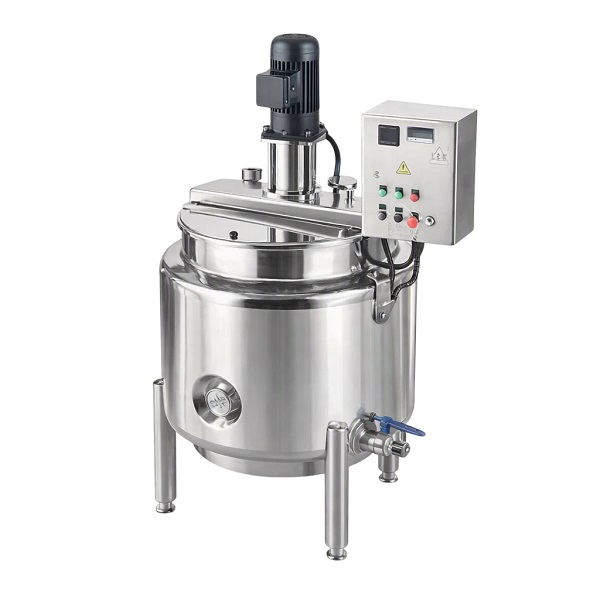

Stainless Steel Sugar Syrup Heating and Mixing Tanks (500 Liters to 10,000 Liters)

Key Features and Benefits

• Material of construction – Contact surfaces in AISI 304 or 316/316L stainless steel meet food-grade requirements, resist corrosion from sugar solutions and cleaning chemicals, and support long service life.
• Heating jacket – Steam, hot-water or electric jackets provide uniform heat transfer so sugar dissolves efficiently without localised burning or caramelisation. Insulation and outer cladding reduce heat loss and keep the exterior safe to touch.
• Agitation system – Anchor, propeller or scraper-style agitators keep the dense syrup moving, prevent settling and minimise crystallisation while avoiding excessive aeration.
• Surface finish – Polished or electropolished interiors reduce product adhesion and make thorough cleaning between batches straightforward.
• Drainable design – Conical or dished bottoms with large-radius corners promote complete emptying and reduce residual syrup.
• Access and instrumentation – Manways, temperature sensors, sight glasses and CIP spray-ball provisions can be integrated as required.
• Local fabrication advantage – Manufactured in Kenya with parts availability and after-sales support, these stainless steel sugar syrup heating and mixing tanks shorten lead times and simplify future servicing.

Also See: Stainless Steel Beverage Mixing Tanks

Applications and Use Cases

Stainless steel sugar syrup heating and mixing tanks are used for:

• Soft-drink and beverage production – preparing simple syrup, flavoured bases and concentrate blends.
• Confectionery and bakery – dissolving sugar for caramels, glazes, fillings and candies.
• Pharmaceutical and herbal preparations – producing medicinal syrups and suspensions under controlled temperature.
• Dairy and ice-cream processing – incorporating sugar into milk bases or flavoured syrups.
• General food processing – glucose, fructose or fruit-based syrup preparation where hygienic heating and mixing are required.

Who Is This Product For?

These tanks suit beverage manufacturers, soft-drink bottlers, confectioners, pharmaceutical syrup producers, dairy processors and any food plant that needs reliable, hygienic preparation of sugar-based syrups. They are particularly practical for companies in Kenya and East Africa that value local fabrication, installation support and ready availability of spare parts.

They may not be the first choice for extremely high-pressure reactions or processes requiring exotic alloys beyond 316L; such applications are evaluated case by case.

Also See: Stainless Steel Fermentation Tanks

Important Buying Considerations

• Match capacity to typical batch volume plus freeboard for agitation and any foaming.
• Confirm material grade against cleaning chemicals and any acidic flavourings. 304 suits most food-grade syrup duties; 316/316L is preferred where higher corrosion resistance is needed.
• Decide on heating medium (steam, hot water or electric) according to available utilities.
• Select agitator type for the expected viscosity range to avoid crystallisation or burning.
• Check site space, foundation strength, steam or power supply and integration with filters or transfer pumps.
• Factor in local support, warranty and parts availability when comparing total cost of ownership.

Installation and Maintenance

Raydan offers free installation and commissioning where applicable. Typical site needs include a level foundation capable of supporting the filled tank, suitable steam or electrical supply for heating, and clear access for loading, inspection and discharge. Countrywide delivery across Kenya is standard, with shipping to selected major towns in Tanzania, Uganda, Rwanda and Burundi.

Routine care centres on inspecting seals, agitator components and jacket connections, keeping the interior free of residual sugar, and following safe draining and CIP procedures. Because the tanks are fabricated locally, replacement parts and technical assistance remain readily available.

Also See: Stainless Steel Mixing Tanks

FAQs

1. What is a stainless steel sugar syrup heating and mixing tank used for?
   It is used to dissolve granulated sugar into water, blend flavours or additives, and maintain the syrup at a controlled temperature for beverage, confectionery or pharmaceutical use.
2. What capacity range is available?
   Standard offerings cover 500 litres to 10,000 litres; custom sizes can be discussed.
3. Why is a heating jacket important for sugar syrup?
   Controlled heating dissolves sugar efficiently, prevents crystallisation and avoids localised scorching that would discolour or degrade the product.
4. What agitator types are suitable?
   Anchor, propeller or scraper agitators are commonly used to keep viscous syrups moving without excessive aeration.
5. Is installation included?
   Free installation and commissioning are offered where applicable. Countrywide delivery across Kenya is standard, with shipping to selected East African towns.
6. What warranty and after-sales support are provided?
   A one-year warranty is included. After-sales service and parts availability are provided by the local fabrication team.
7. Can the tanks be cleaned with CIP systems?
   Designs can incorporate CIP spray balls and polished surfaces that support automated cleaning between batches.

When consistent syrup quality, hygienic design and local technical support matter, Raydan Stainless Steel Fabricators supplies stainless steel sugar syrup heating and mixing tanks engineered for the realities of East African food and beverage production. Request a quotation or technical discussion and we will size and configure a tank that matches your process.
