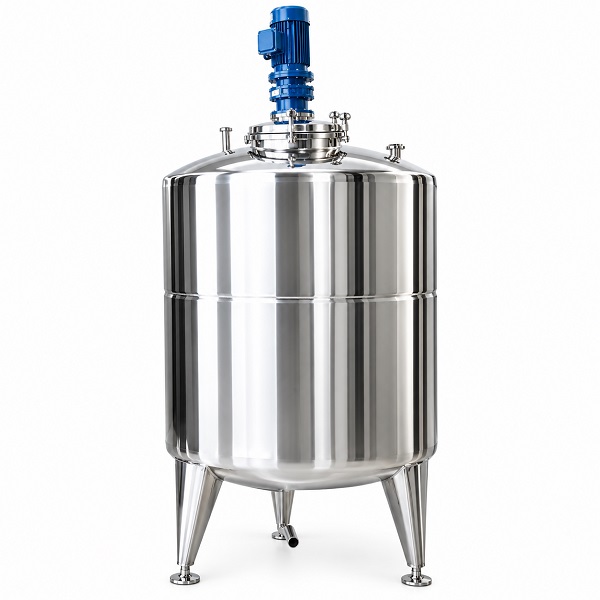

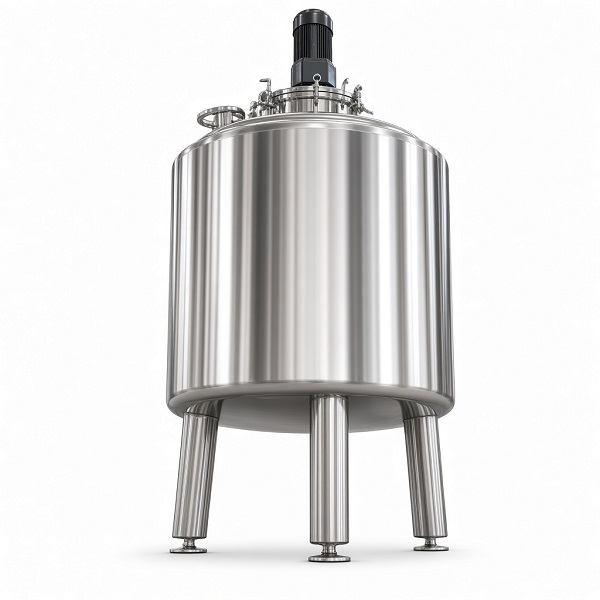

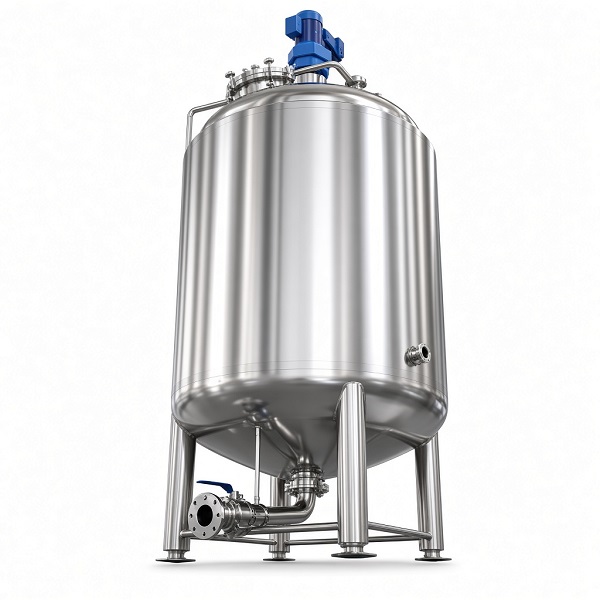

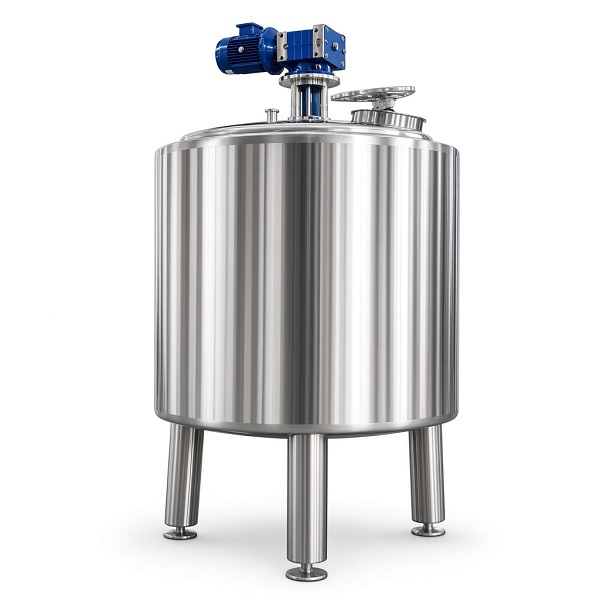

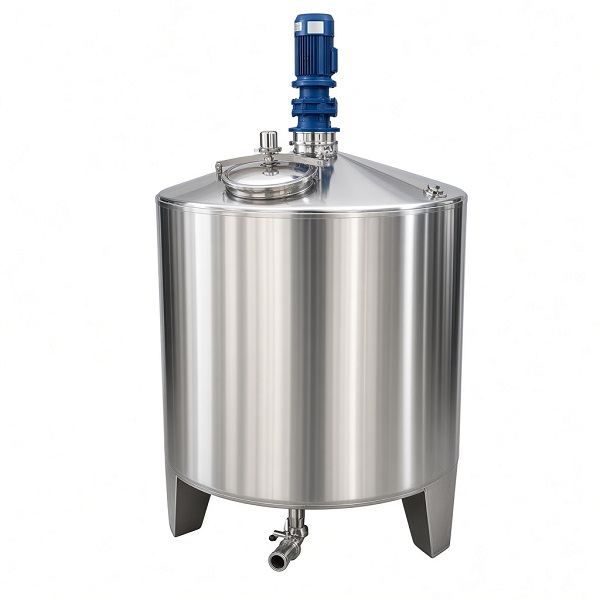

Stainless Steel Beverage Mixing Tanks (500 Liters to 10,000 Liters)
Quick Answer: What is a Stainless Steel Beverage Mixing Tank?A Stainless Steel Beverage Mixing Tank is a sanitary process vessel fitted with an agitator and designed for the controlled blending, dissolving and homogenising of juices, soft drinks, syrups, dairy beverages, plant-based drinks and other liquid formulations. Fabricated from food-grade stainless steel (typically AISI 304 or 316L), these tanks support uniform ingredient distribution, optional temperature control via jackets, and CIP-ready cleaning so that product quality and hygiene remain consistent from batch to batch. Stainless Steel Beverage Mixing Tanks from Raydan Stainless Steel Fabricators are custom-built process vessels sized from 500 litres to 10,000 litres. Manufactured in Nairobi to KEBS quality standards and supplied with a one-year warranty, they give beverage producers across Kenya and East Africa reliable local equipment instead of long-lead imported alternatives. These beverage mixing tanks (also called stainless steel blending tanks, juice mixing tanks, SS liquid mixing tanks or beverage processing mixing tanks) handle everything from simple water-and-syrup blends to more viscous concentrates and flavour bases. The design focuses on cleanability, complete drainage and process control so operators can achieve repeatable taste, colour and solids distribution without contamination risk. |
Key Features and Benefits
- Food-grade materials – Contact surfaces in AISI 304 or 316L stainless steel resist corrosion from acidic juices, cleaning chemicals and chlorides. 304 suits most general beverages; 316L is preferred for higher-acidity or saline products.
- Agitation systems – Top-mounted propeller, paddle, turbine or anchor agitators create the required flow pattern. Variable-speed drives let operators match shear to product viscosity, from thin juices to thicker syrups.
- Surface finish – Internal polishing (mechanical or electropolished where specified) reduces product adhesion and supports thorough CIP cleaning.
- Optional jackets and insulation – Dimple, half-pipe or full jackets allow steam, hot-water or chilled-water temperature control for dissolving sugars, chilling concentrates or holding product at process temperature. Insulation minimises heat loss.
- Sanitary construction – Large-radius corners, fully drainable bottoms (dished or conical), sanitary fittings and CIP spray-ball provisions eliminate dead legs and speed changeovers.
- Access and instrumentation – Manways, sight glasses, sample valves, level indicators and temperature sensors can be integrated as required.
- Local fabrication support – Built in Kenya with parts availability and after-sales service, these stainless steel beverage mixing tanks shorten lead times and simplify future maintenance compared with fully imported units.
Also See: Stainless Steel Pharmaceutical Mixing Tanks
Applications and Use Cases
Stainless steel beverage mixing tanks are used for:
- Soft drinks and energy drinks – blending water, syrups, flavourings and additives.
- Fruit juices and purees – mixing concentrates, pulp, water and stabilisers.
- Dairy and plant-based beverages – standardising milk, preparing yoghurt bases or blending soy, oat and almond drinks.
- Syrups and flavour bases – dissolving sugar, acids and concentrates.
- Alcoholic beverage preparation – blending bases for beer, wine or RTD products where sanitary construction is required.
- Related liquid processing – sauces, dressings and other food liquids that share similar hygienic needs.
Who Is This Product For?
These tanks suit soft-drink manufacturers, juice processors, dairy plants, craft beverage producers, contract packers and any operation that needs consistent liquid blending at pilot or production scale. They are especially practical for companies in Kenya and East Africa that value local fabrication, installation support and ready spare-parts availability.
They may not be ideal for extreme high-pressure reactions or processes requiring exotic alloys beyond 316L; such cases are reviewed individually.
Also See: Industrial Stainless Steel Mixing Tanks
Important Buying Considerations
- Match capacity to typical batch volume plus freeboard for agitation and any foaming.
- Choose 304 for most aqueous beverages; specify 316L when acidity, chlorides or aggressive CIP chemicals are present.
- Select agitator type according to viscosity and desired shear.
- Decide whether a heating/cooling jacket is needed for dissolution or temperature holding.
- Confirm surface finish and drainability requirements for cleanability and food-safety audits.
- Factor in local support, warranty and parts availability when comparing total cost of ownership.
- Check site space, power supply and utility connections early in the planning stage.
Installation and Maintenance
Raydan offers free installation and commissioning where applicable. Typical site needs include a level foundation, suitable electrical supply for the agitator motor, and utility connections if a jacket is fitted. Countrywide delivery across Kenya is standard, with shipping to selected major towns in Tanzania, Uganda, Rwanda and Burundi.
Routine care centres on inspecting seals and agitator components, monitoring surface condition, and following validated CIP procedures. Because the tanks are fabricated locally, replacement parts and technical assistance remain readily available.
FAQs
- What is a stainless steel beverage mixing tank used for?
It is used to blend, dissolve and homogenise juices, soft drinks, syrups, dairy beverages and other liquid formulations under hygienic conditions. - What capacity range is available?
Standard offerings cover 500 litres to 10,000 litres; custom sizes can be discussed. - Should I choose 304 or 316L stainless steel?
304 is suitable for most general beverage applications. 316L offers better resistance to high acidity, chlorides and aggressive cleaning chemicals. - Are these tanks CIP compatible?
Designs include features that support Clean-in-Place procedures when specified. - What agitator types are available?
Common options include propeller, paddle, turbine and anchor agitators, selected according to product viscosity and process goals. - Is installation included?
Free installation and commissioning are offered where applicable. Countrywide delivery across Kenya is standard, with shipping to selected East African towns. - What warranty and after-sales support are provided?
A one-year warranty is included. After-sales service and parts availability are provided by the local fabrication team.
Get a Custom Fabricated Beverage Mixing Tank Made by Raydan
When consistent product quality, hygienic design and local technical support matter, Raydan Stainless Steel Fabricators supplies stainless steel beverage mixing tanks engineered for the realities of East African beverage production. Request a quotation or technical discussion and we will size and configure a tank that matches your process.
