Description

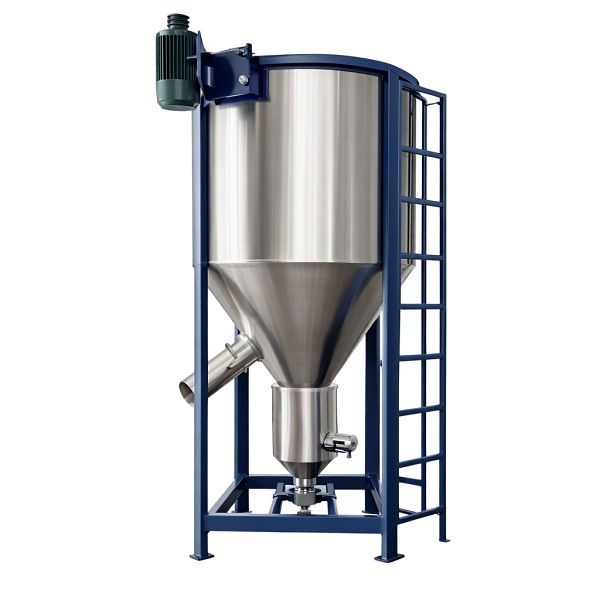

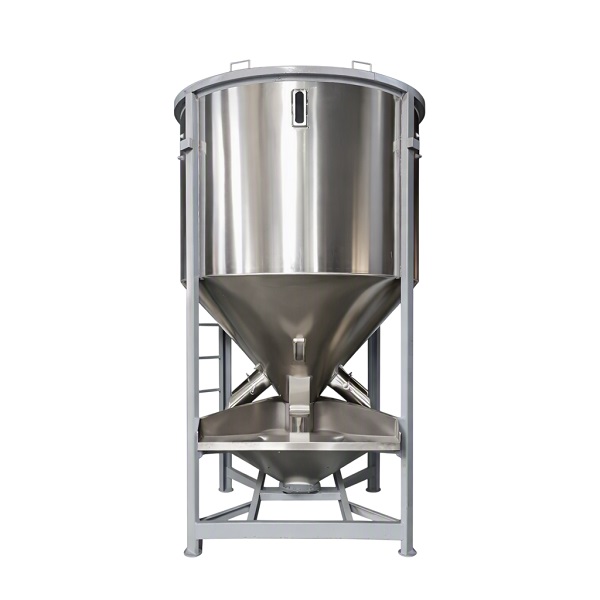

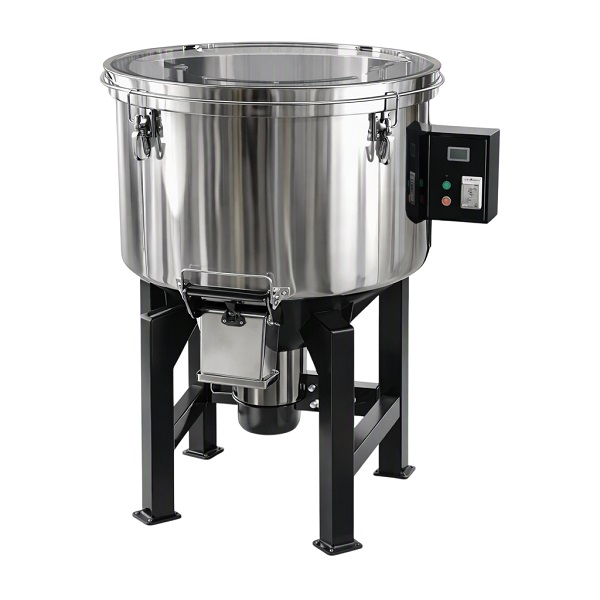

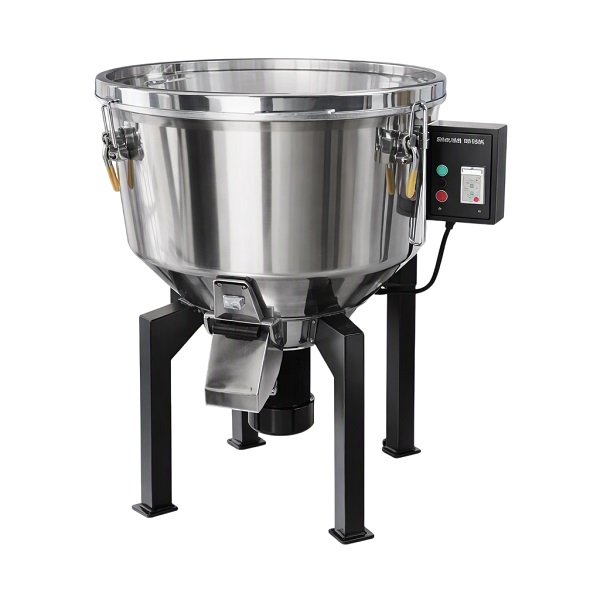

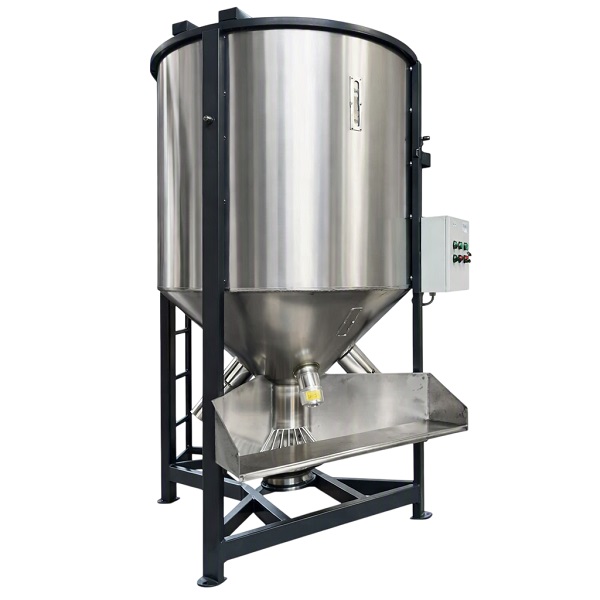

Stainless Steel Plastic Granules Mixing Tanks (500 kgs to 5,000 kgs)

Key Features and Benefits

• Material of construction – Contact surfaces in AISI 304 or 316 stainless steel resist corrosion, prevent rust contamination and provide a smooth, low-static surface that keeps powders and masterbatch from sticking to the walls.
• Agitation system – Vertical helical screw or horizontal ribbon agitators create a continuous lifting and cascading action that homogenises dense plastic granules and lighter additives within a short cycle time.
• Discharge design – Conical bottom with slide-gate or butterfly valve allows complete, controlled emptying and reduces residual material between batches.
• Heavy-duty drive – Industrial three-phase motor and gearbox deliver the torque needed for full-load operation without excessive vibration.
• Access and cleaning – Wide maintenance doors, inspection windows and snag-free internal welds support rapid colour changeovers and thorough cleaning.
• Safety and control – Optional digital timers, overload protection and door interlocks stop the agitator when access is opened.
• Local fabrication advantage – Built in Kenya with parts availability and after-sales support, these stainless steel plastic granules mixing tanks shorten lead times and simplify future servicing.

Also See: Stainless Steel Industrial Chemical Mixing Tanks

Applications and Use Cases

Stainless steel plastic granules mixing tanks are used for:

• Injection and blow moulding – blending virgin granules (PET, HDPE, PP, PVC) with precise ratios of colour masterbatch.
• Plastic extrusion – preparing uniform batches for pipes, profiles, films and sheets.
• Masterbatch production – homogenising base resins with concentrated pigments and additives.
• Recycling operations – mixing virgin material with regrind or crushed recycled plastic for consistent melt flow.
• Related dry-blending duties – chemical granules, rubber pellets or industrial powdered additives where stainless construction is preferred.

Who Is This Product For?

These tanks suit plastic processors, extruders, moulders, masterbatch producers, recycling plants and any operation that needs reliable, contamination-free blending of plastic granules and additives. They are especially practical for companies in Kenya and East Africa that value local fabrication, installation support and ready spare-parts availability.

They may not be ideal for extremely abrasive materials that require specialised linings or for processes needing continuous high-shear wet mixing; such cases are reviewed individually.

Also See: Stainless Steel Cosmetics Mixing Tanks

Important Buying Considerations

• Match batch capacity to typical production volume and freeboard for effective tumbling.
• Confirm stainless grade against any corrosive additives or cleaning chemicals.
• Choose agitator type according to granule density and required mixing intensity.
• Plan for easy access and discharge to minimise downtime during colour changes.
• Check power supply, foundation requirements and integration with upstream loaders or downstream feeders.
• Factor in local support, warranty and parts availability when comparing total cost of ownership.

Installation and Maintenance

Raydan offers free installation and commissioning where applicable. Typical site needs include a level foundation capable of supporting the loaded tank, suitable three-phase power and clear access for loading, inspection and discharge. Countrywide delivery across Kenya is standard, with shipping to selected major towns in Tanzania, Uganda, Rwanda and Burundi.

Routine care centres on inspecting seals, agitator components and discharge valves, keeping the interior free of residual masterbatch, and following safe operating procedures. Because the tanks are fabricated locally, replacement parts and technical assistance remain readily available.

Also See: Stainless Steel Sugar Syrup Heating and Mixing Tanks

FAQs

1. What is a stainless steel plastic granules mixing tank used for?
   It is used to blend plastic resins, pellets, regrind and masterbatch into a uniform mixture before extrusion, injection moulding or blow moulding.
2. What capacity range is available?
   Standard offerings cover 500 kg to 5,000 kg batch capacity; custom sizes can be discussed.
3. Why choose stainless steel over mild steel for plastic granules?
   Stainless steel resists rust, reduces static cling, prevents contamination between colour batches and is easier to clean thoroughly.
4. What type of agitator is used?
   Vertical helical screw or ribbon-style agitators that lift and cascade the granules for rapid, uniform blending.
5. Is installation included?
   Free installation and commissioning are offered where applicable. Countrywide delivery across Kenya is standard, with shipping to selected East African towns.
6. What warranty and after-sales support are provided?
   A one-year warranty is included. After-sales service and parts availability are provided by the local fabrication team.
7. Can the tanks handle recycled regrind?
   They are commonly used to blend virgin granules with recycled material for consistent processing properties.

Get a Custom Fabricated Solution for Your Needs

When consistent colour, reduced rejects and local technical support matter, Raydan Stainless Steel Fabricators supplies stainless steel plastic granules mixing tanks engineered for the realities of East African plastics production. Request a quotation or technical discussion and we will size and configure a tank that matches your process.
