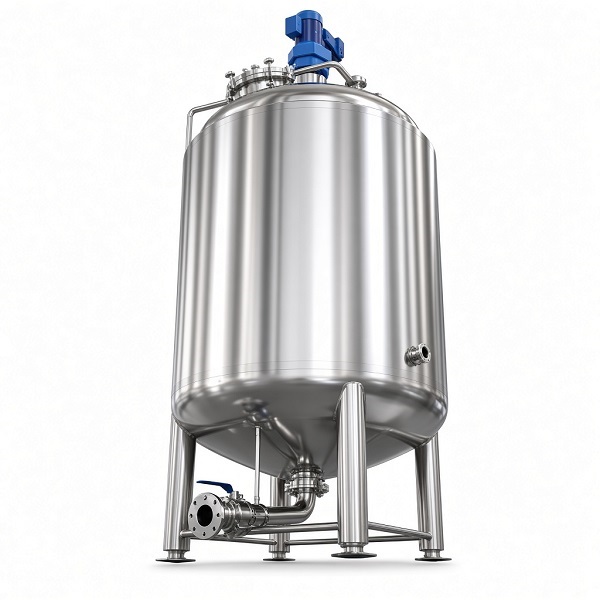

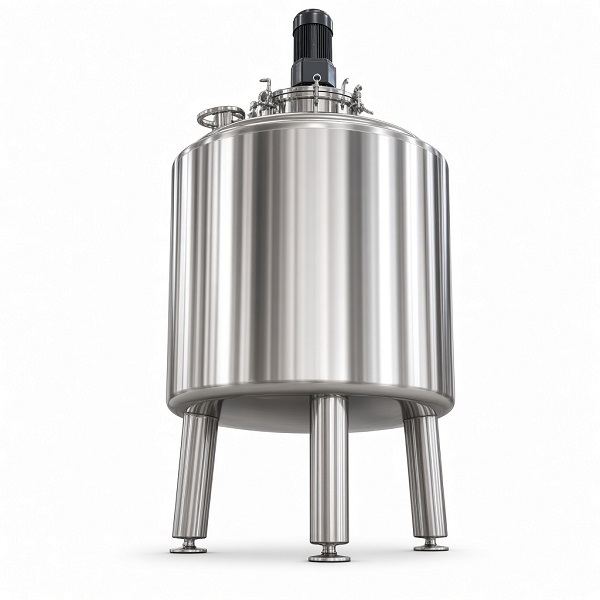

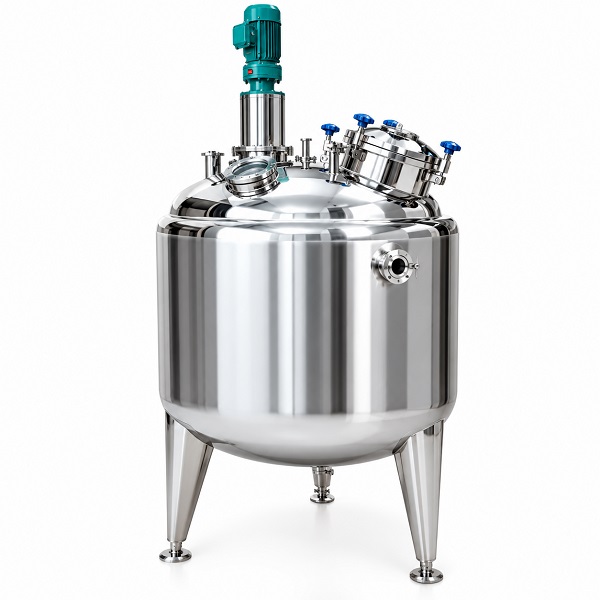

Stainless Steel Industrial Chemical Mixing Tanks (500 Liters to 10,000 Liters)
Quick Answer: What is a Stainless Steel Industrial Chemical Mixing Tank?A Stainless Steel Industrial Chemical Mixing Tank is a process vessel fitted with an agitator and designed for the controlled blending, dissolving, suspending or reacting of industrial chemicals, solvents, resins, detergents, paints and other liquid formulations. Fabricated from corrosion-resistant stainless steel (typically AISI 304 or 316/316L), these tanks support uniform mixing, optional temperature control via jackets, and reliable drainage so that product consistency and equipment integrity are maintained across batches. Stainless Steel Industrial Chemical Mixing Tanks from Raydan Stainless Steel Fabricators are custom-built vessels sized from 500 litres to 10,000 litres. Manufactured in Nairobi to KEBS quality standards and supplied with a one-year warranty, they give chemical processors, manufacturers and industrial plants across Kenya and East Africa a durable local alternative to imported equipment. These industrial chemical mixing tanks (also called chemical mixing tanks, SS chemical agitator tanks, industrial chemical blending tanks, stainless steel process mixing vessels or chemical agitation tanks) handle a wide range of viscosities and chemical environments. The design focuses on material compatibility, mechanical strength and process control so operators can achieve repeatable results without premature corrosion or contamination. |
Key Features and Benefits
- Material of construction – Contact surfaces in AISI 304 or 316/316L stainless steel resist corrosion from acids, alkalis, solvents and many industrial chemicals. 316L is preferred for chloride-rich or more aggressive media.
- Agitation systems – Top-mounted propeller, turbine, paddle, anchor or high-shear agitators create the required flow pattern. Variable-speed drives allow operators to match shear and torque to product viscosity.
- Optional jackets and insulation – Dimple, half-pipe or full jackets enable steam, hot-water or chilled-water temperature control for reactions, dissolution or viscosity management. Insulation reduces heat loss.
- Surface finish and cleanability – Mechanical polish or electropolish (where specified) reduces product adhesion and supports thorough cleaning between batches.
- Drainable construction – Dished, conical or flat bottoms with large-radius corners promote complete drainage and minimise residual product.
- Access and instrumentation – Manways, sight glasses, sample valves, level indicators and temperature sensors can be integrated as required.
- Local fabrication advantage – Built in Kenya with parts availability and after-sales support, these stainless steel industrial chemical mixing tanks shorten lead times and simplify future maintenance.
Also See: Stainless Steel Pharmaceutical Mixing Tanks
Applications and Use Cases
Stainless steel industrial chemical mixing tanks are used for:
- Chemical manufacturing – blending solvents, resins, adhesives, detergents, surfactants and specialty chemicals.
- Paint, ink and coatings production – dispersing pigments and preparing formulations.
- Water and wastewater treatment – preparing coagulants, flocculants, pH adjusters and dosing solutions.
- Industrial process plants – dissolving solids, suspending powders or homogenising liquid blends.
- Related duties – lubricants, oils, fertilisers and other liquid chemical preparations where stainless construction is preferred.
Who Is This Product For?
These tanks suit chemical manufacturers, industrial processors, paint and coatings producers, water-treatment operators and any facility that requires reliable, corrosion-resistant mixing of liquid chemicals. They are particularly practical for companies in Kenya and East Africa that value local fabrication, installation support and ready availability of spare parts.
They may not be ideal for extremely high-pressure reactions requiring specialised alloys beyond 316L or for processes that demand exotic linings; such applications are evaluated case by case.

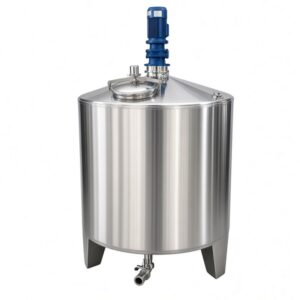

Also See: Stainless Steel Beverage Mixing Tanks
Important Buying Considerations
- Match capacity to typical batch volume plus freeboard for agitation and any foaming.
- Confirm material grade against the specific chemicals, concentrations and temperatures involved. 304 suits many general duties; 316/316L is preferred for stronger acids, chlorides or aggressive media.
- Select agitator type according to viscosity and desired mixing intensity.
- Decide whether a heating/cooling jacket is required for process temperature control.
- Check site space, foundation strength, power supply and integration with existing pumps or transfer systems.
- Factor in local support, warranty and parts availability when comparing total cost of ownership.
Installation and Maintenance
Raydan offers free installation and commissioning where applicable. Typical site needs include a level foundation capable of supporting the filled tank, suitable electrical supply for the agitator motor, and utility connections if a jacket is fitted. Countrywide delivery across Kenya is standard, with shipping to selected major towns in Tanzania, Uganda, Rwanda and Burundi.
Routine care centres on inspecting seals, agitator components and bearings, verifying chemical compatibility of new media, and following safe draining and cleaning procedures. Because the tanks are fabricated locally, replacement parts and technical assistance remain readily available.
FAQs
- What is a stainless steel industrial chemical mixing tank used for?
It is used to blend, dissolve, suspend or react industrial chemicals, solvents, resins, detergents, paints and similar liquid formulations under controlled conditions. - What capacity range is available?
Standard offerings cover 500 litres to 10,000 litres; custom sizes can be discussed. - Should I choose 304 or 316/316L stainless steel?
304 is suitable for many general chemical applications. 316 or 316L provides better resistance to chlorides, stronger acids and more aggressive media. - What agitator types are available?
Common options include propeller, turbine, paddle, anchor and high-shear agitators, selected according to product viscosity and process goals. - Is installation included?
Free installation and commissioning are offered where applicable. Countrywide delivery across Kenya is standard, with shipping to selected East African towns. - What warranty and after-sales support are provided?
A one-year warranty is included. After-sales service and parts availability are provided by the local fabrication team. - Can the tanks include heating or cooling jackets?
Jacketed designs are available for processes that require temperature control during mixing.
Get a Custom Fabricated Solution for Your Needs
When reliable chemical blending, corrosion resistance and local technical support matter, Raydan Stainless Steel Fabricators supplies stainless steel industrial chemical mixing tanks engineered for the realities of East African process plants. Request a quotation or technical discussion and we will size and configure a tank that matches your process requirements.
